CONCRETE ROOF TILES – W.P Roofing

HOMESTEAD

Desmond Hall — Sun, 11 Dec 2022 17:41:23 +0000

Advantages

A cost effective alternative to the Marseille clay tile.
Well suited to a variety of modern as well as traditional architectural styles.

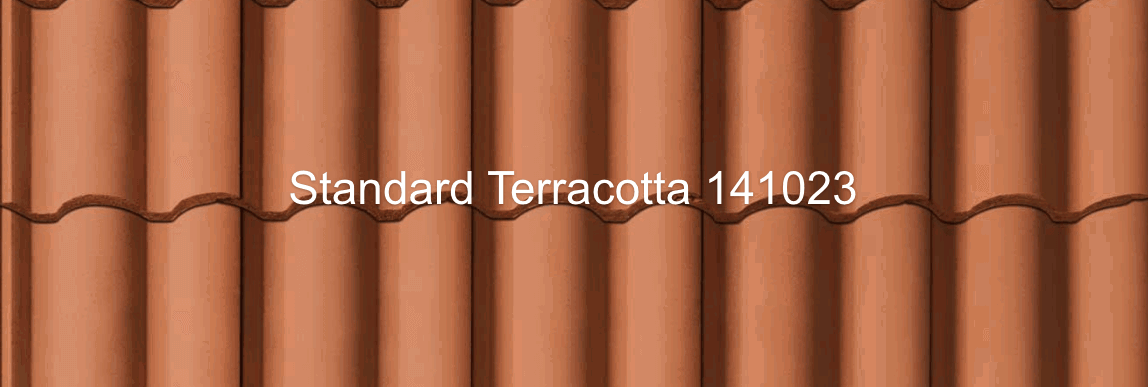

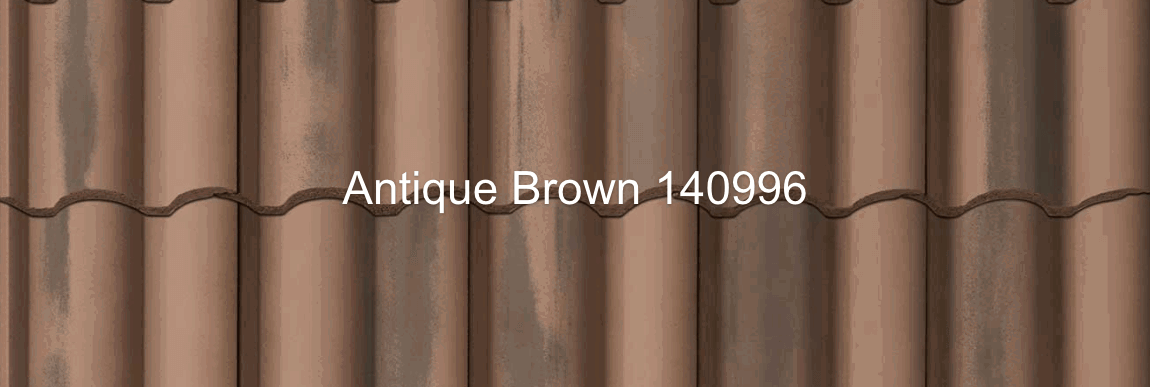

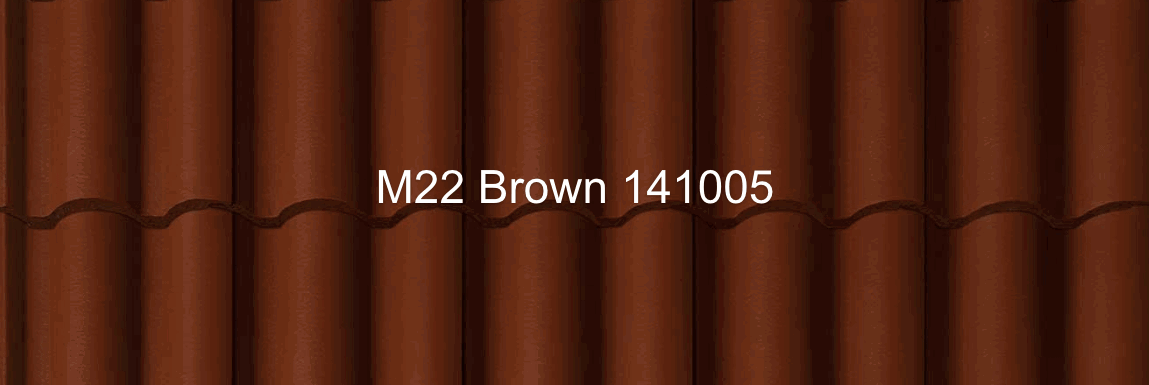

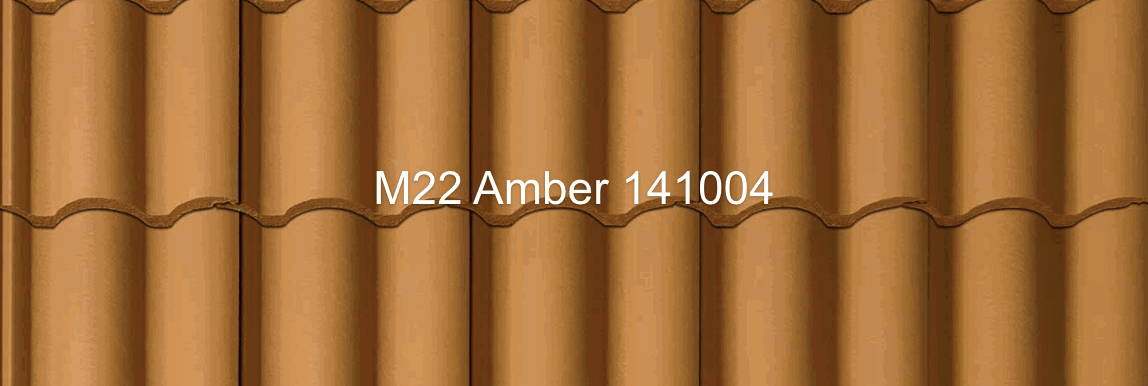

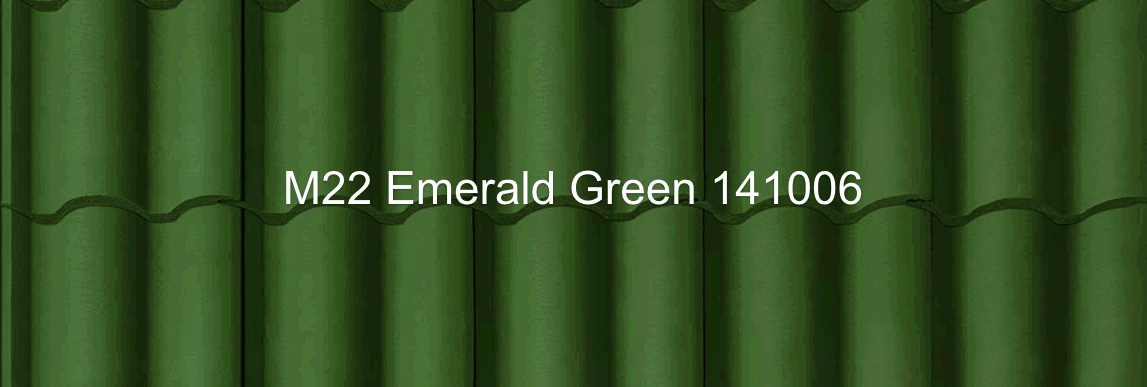

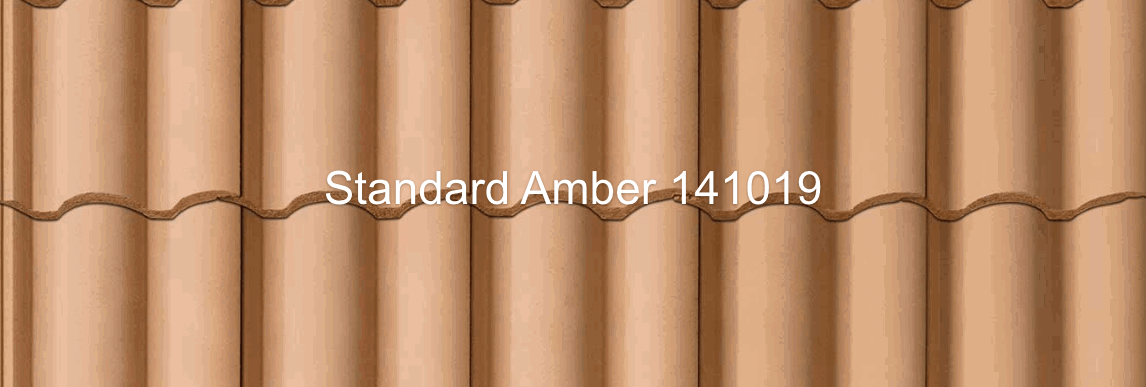

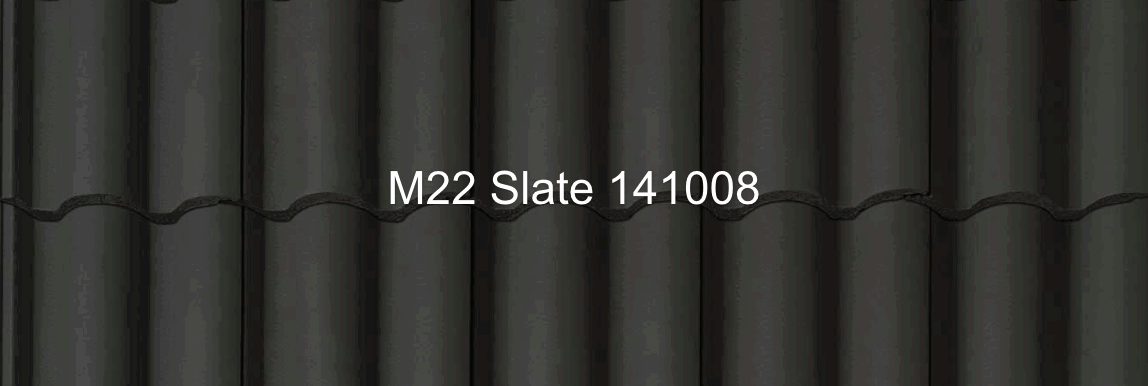

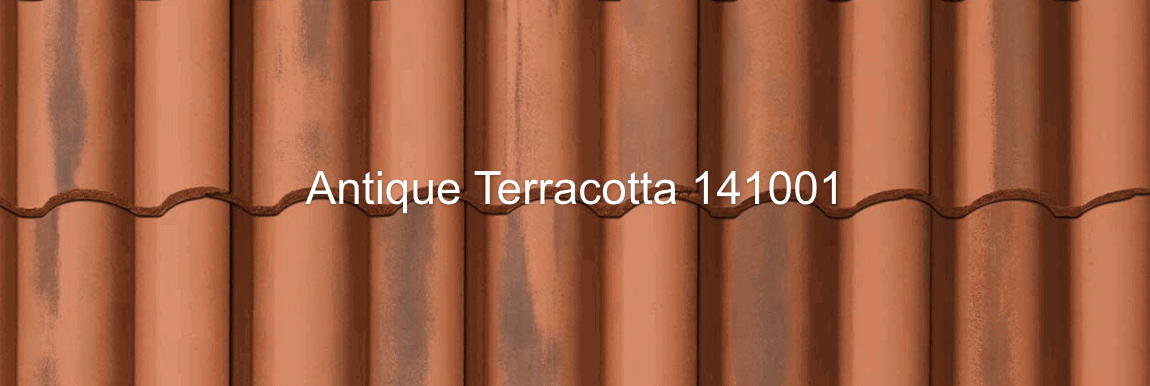

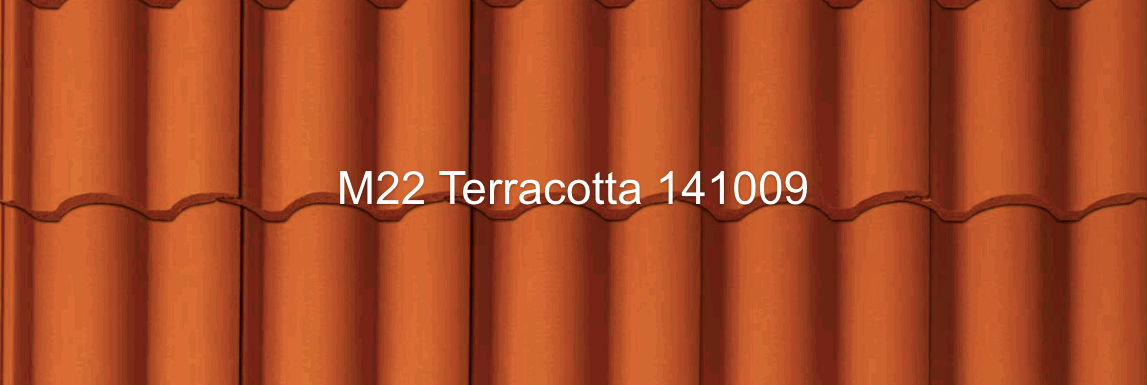

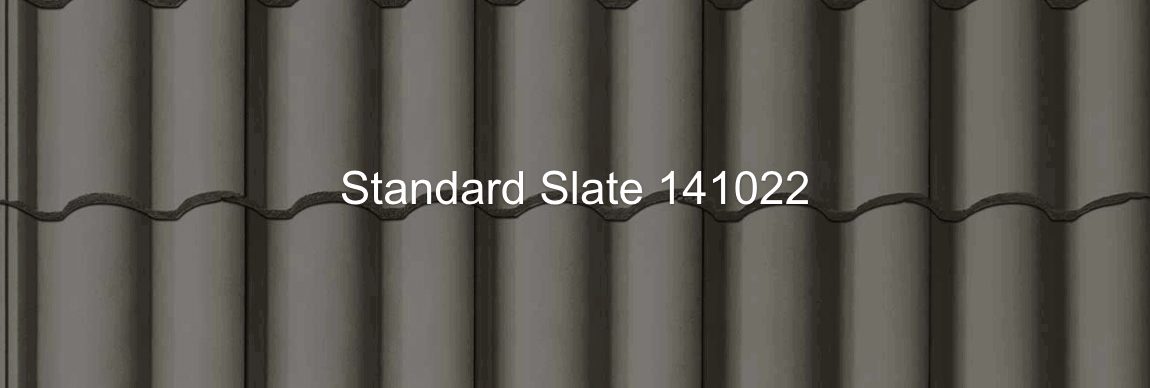

A large choice of aesthetic colours and finishes including Standard Through-colour, Antique and Marley M22-coated premier concrete roof tile finish.

Download Brochure

CLEAR TILE

Desmond Hall — Sun, 11 Dec 2022 17:39:04 +0000

FEATURES AND BENEFITS

Simple to install, (takes the place of the existing concrete roof tile).
Each tile is fitted with a securing device for proper installation.
Allows light to enter the roof space illuminating room surroundings, including garages, attics, atriums.
Produced to withstand the harshest elements (wind tunnel tested – Germany).
Highly UV resistant and aesthetically distinctive. (UV simulation tested – Germany).

Click Here to Download Brochure

CUPOLA

Desmond Hall — Sun, 11 Dec 2022 17:26:50 +0000

Technical Data
Overall size of tile (mm) Approximate mass per tile Linear cover per tile	420 x 332 mm 4.7 – 4.9 kg 300 mm

Structural Data
The roof structure specifications should comply with the regulations in your area.
Rafter Centres
Up to 760 mm Up to 950 mm	38 x 38 Batten 38 x 50 mm Batten on edge
Headlap (mm)
17° to 25° 26° and over	100 75
Batten Centres (mm)
17° to 25° 26° and over	320 345
Batten per m² (m)
17° to 25° 26° and over	3.13 2.9
Number of tiles per m²
17° to 25° 26° and over	10.42 9.66
Approximate mass of tile m² (kg)
17° to 25° 26° and over	± 51 ± 47
Undertile Membrane Recommended at all Pitches
17° to 25° 26° and over	Mandatory Recommended
** No allowance made for wastage.

Click Here to Download Brochure

DOUBLE ROMAN

Desmond Hall — Sun, 11 Dec 2022 17:03:46 +0000

OVERALL SIZE OF TILE : 420 x 332mm

LINEAR COVER : 300mm

MASS PER TILE : 4.4kg

TECHNICAL DATA

Roof pitch	17.5°-25°	26° and up
Headlap (minimum)	100mm	75mm
Batten centres (maximum)	320mm	345mm
Battens per m²	3.13m	2.9m
Number of tiles per m²	10.42	9.66
Mass of tiles per m²	45.8kg	42.5kg
Tilting Batten	Batten + 14mm

THROUGH COLOUR

RUSTIC COLOUR

MIXIT COLOUR

Click Here to Download Brochure

ELITE

Desmond Hall — Sun, 11 Dec 2022 16:18:18 +0000

The Elite concrete roof tile originated from new and advanced technologies in the manufacturing process of concrete roof tiles and is available in a variety of surface finished and colours. The Elite tile was launched as a cost-effective alternative to slate tiles. It is advised that you view the Recommended Elite fixing guide for proper installation. This is found in the Coverland Product Technical Manual (Brochures). It is recommended that you view actual tile samples before making a purchasing decision. Colours may vary due to the digital conversion of the files.

TAUNUS

Desmond Hall — Sun, 11 Dec 2022 16:14:29 +0000

Always eager to set new standards in style, quality and excellence, MONIER Roofing developed the striking Taunus. This bold profile tile has a long and noble history. For centuries they were individually handmade from clay. Not only does it represent the highest standards in technical refinement, but now, thanks to MONIER Roofing’s unique production capability, the Taunus is stronger, more balanced and above all, more affordable than its predecessor. Taunus boasts a required incline of 17°, making it the perfect choice for low-pitched roofs. It’s deep roll creates roofs of majestic character with it’s bold, striking contours and organic undulating rolls.

MONARCH
